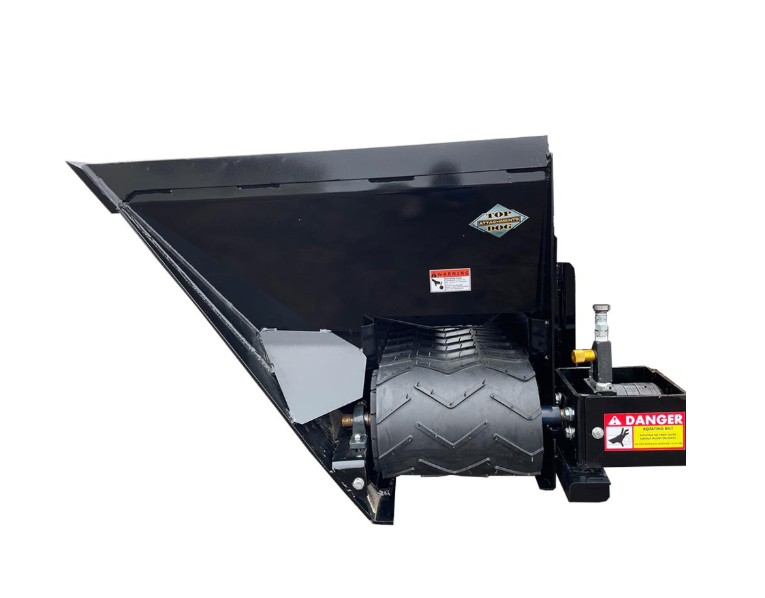

Top Dog Dual Side Flow Heavy Material Bucket
Top Dog's Dual Side Flow Heavy Material Bucket is a heavy-duty, American-made skid steer attachment featuring dual-side discharge, adjustable belt speed, and a beater bar system, ideal for efficient handling of materials like sand, gravel, and asphalt.
About the Product
Product Features
The Top Dog Dual Side Flow Heavy Material Bucket is a robust and versatile skid steer attachment designed for efficient handling and distribution of heavy materials such as sand, gravel, and asphalt. Constructed from durable A-50 grade steel, this bucket features a unique dual-side discharge system, allowing operators to scoop materials and discharge them from either side, enhancing productivity on the job site. Equipped with three orbit motors—one powering the beater bar to prevent material bridging, and two operating the flexible track for side discharge—this attachment ensures smooth and controlled material flow. The adjustable belt speed, facilitated by dual control valves, provides operators with precise control over material discharge rates. With a heaped capacity of 21 cubic feet and a weight of approximately 1,000 lbs, this American-made bucket is built to withstand the rigors of heavy-duty applications.
- Dual-Side Discharge: Allows material to be discharged from either side, enhancing versatility and efficiency.
- Triple Orbit Motors: One motor powers the beater bar to prevent material bridging, while two motors operate the flexible track for side discharge.
- Adjustable Belt Speed: Dual control valves enable precise control over the belt speed and direction.
- Durable Construction: Made from A-50 grade steel with a 3/16″ bucket thickness and 3/8″ wear bars for enhanced durability.
- High Capacity: Offers a heaped capacity of 21 cubic feet, suitable for heavy material handling.
- Hydraulic Compatibility: Operates efficiently with 15–20 GPM hydraulic flow and flat-face couplers.
- Made in the USA: Proudly manufactured in the United States, ensuring quality and reliability.
Product Specs
Model
TD-9000144
TD-9000145
Weight
1000 lbs
1100 lbs
Heaped Capacity
24.5 cu.ft.
24.5 cu.ft
Hydraulic Couplers
Flat Face
Flat Face
PSI Max
2500 PSI
2500 PSI
Flow Rate
15-20 GPM
15-20 GPM
