ANBO Manufacturing 120 HP Tractor Grapple Rake
• Manufactured in Colville, WA
• AR400F Steel Frame
• Optimized for Tractors
Built for tractors up to 120 HP, the ANBO GR120 Grapple Rake delivers unmatched strength and control. Its AR400F steel frame and clamshell-style design handle brush, rocks, and debris with ease. Greaseable pivots and secure hose routing ensure long-lasting durability. Made in the USA.
About the Product
Product Features

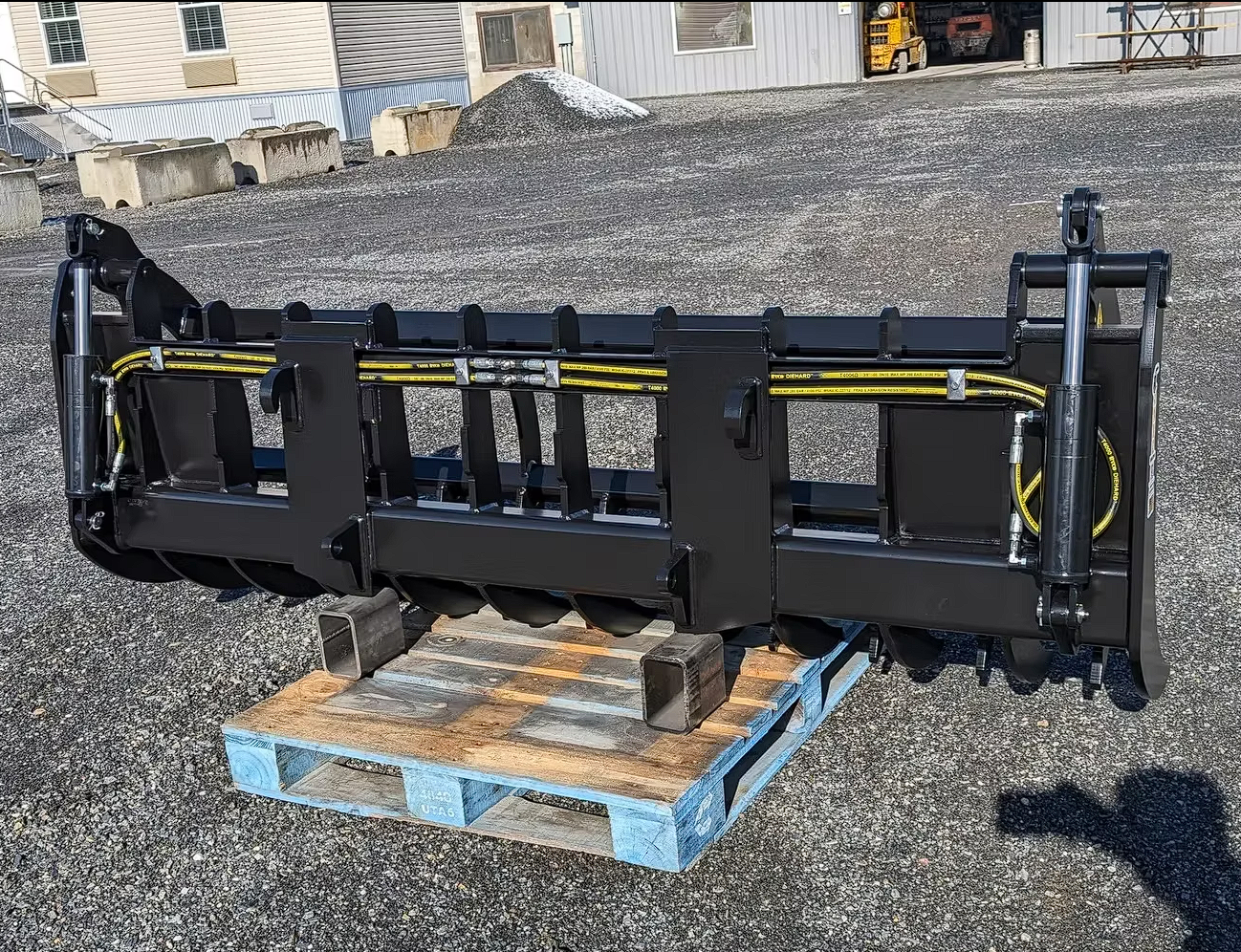

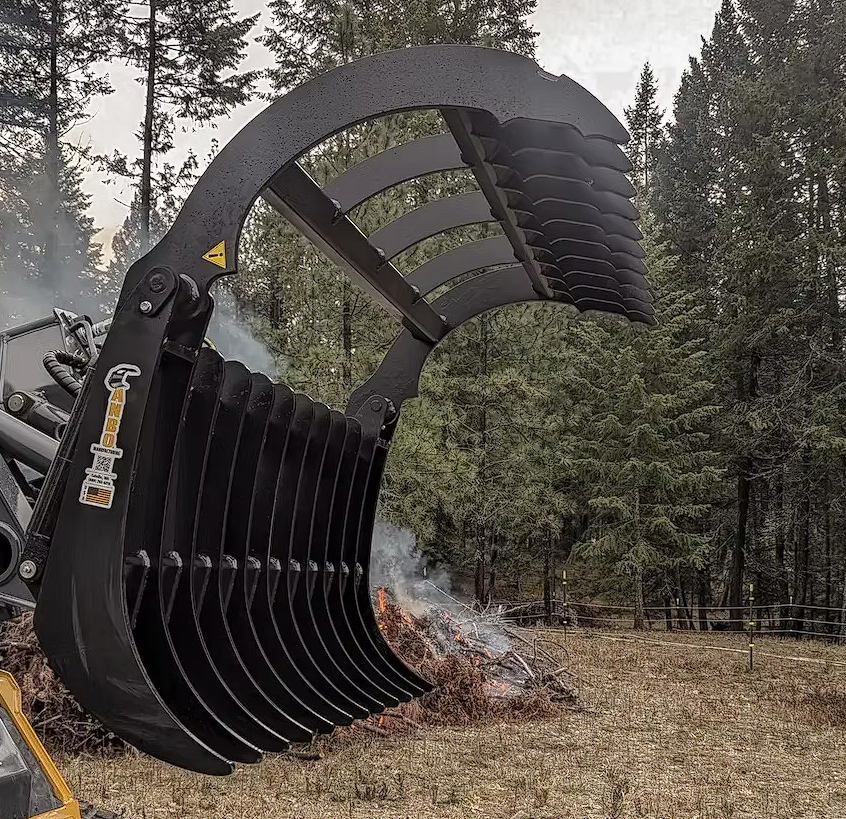

The ANBO GR120 Grapple Rake is engineered for tractors up to 120 horsepower, offering exceptional strength, control, and versatility. Its clamshell-style rake design allows easy raking, digging, and debris handling for demanding jobs. Built in the USA from AR400F steel, it’s designed for long-term performance without compromising lift capacity. With greaseable pivot points, secure hose routing, and heavy-duty cylinders, the GR120 delivers reliable power for clearing brush, moving rocks, and cleaning up work sites.
- Designed for machines up to 120 horsepower.
- Clamshell grapple for efficient raking, digging, and moving.
- Built from 5/8″-1/2″ AR400F steel.
- Hydraulic cylinders for reliable clamping power.
- All pivot points greaseable; hoses securely routed for protection.
- Proudly made in the USA with a 2-year grapple, and 3-year cylinder warranty.
Product Specs
Model
ANBO-GR120-6-61-1
ANBO-GR120-6-67-1
ANBO-GR120-6-74-1
ANBO-GR120-6-80-1
ANBO-GR120-6-87-1
ANBO-GR120-6-94-1
Width
61"
67"
74"
80"
87"
94"
Max HP
120 HP
120 HP
120 HP
120 HP
120 HP
120 HP
Tine Spacing
6"
6"
6"
6"
6"
6"
Tine Size
Outer: 3/4" AR400F Steel Inner: 5/8" AR400F Steel
Outer: 3/4" AR400F Steel Inner: 5/8" AR400F Steel
Outer: 3/4" AR400F Steel Inner: 5/8" AR400F Steel
Outer: 3/4" AR400F Steel Inner: 5/8" AR400F Steel
Outer: 3/4" AR400F Steel Inner: 5/8" AR400F Steel
Outer: 3/4" AR400F Steel Inner: 5/8" AR400F Steel
Opening
48"
48"
48"
48"
48"
48"
Cylinder Size
2.5" x 8"
2.5" x 8"
3" x 8"
3" x 8"
3" x 8"
ANBO Manufacturing
ANBO Manufacturing is known for building some of the toughest, if not the grapples in the industry. American-made, precision engineered, and built from premium AR400F steel for unmatched strength, wear resistance, and lifetime durability. Their grapples are trusted and known by farmers, land managers, contractors, and heavy equipment operators across the country for one simple reason: they hold up when nothing else does.
After briefly closing in 2018, ANBO was brought back to life in 2020 by a former customer who believed equipment this well-built shouldn’t disappear. Still family owned and proudly built in the Colville, WA, ANBO is focused on doing what they do best: crafting high-quality attachments that outlast the machines they’re mounted on.
