CMP Hydra Bypass Grapple for Excavator
• Industry Leading Grapple
• 360 Degree Rotation
• Durable, Replaceable Wear Parts
The forestry, tree work, arborist king. It’ll pick up and rotate bigger logs and than your excavator can handle, in 360 glorious degrees. Dangle grapples have their place in skidding operations, but they shouldn’t be on your mini excavator.
About the Product
Product Features
The CMP Bypass Hydra Grapple is designed for extreme duty performance. Featuring exceptional 360 degree rotational torque, superior control and enhanced clamping strength, the Bypass Hydra Grapple ensures a long operating life, and fast, precise handling of heavy materials such as logs, brush, poles, and debris. An optional electronic diverter valve eliminates the need to plumb expensive secondary auxiliary hydraulics on your excavator. The standard high tensile steel body negates flexing or cracking under load. A built in cross release cushions against overload when stopping rotation under load. Oversized slewing bearings produce unmatched rotational torque. For those looking for a grapple attachment that offers speed and power, the Bypass Hydra Grapple is a perfect fit for the toughest of jobs.
- AR steel wear areas
- Built in cross reliefs
- High tensile steel body
- Oversized slewing bearings
- Optional electronic diverter valve
- Clamp lock valves on models HG102B – HG442B hold pressure even if you let off your button
- Replaceable teeth on models HG142B – HG502B
- High PSI cylinder type (except HG61B)

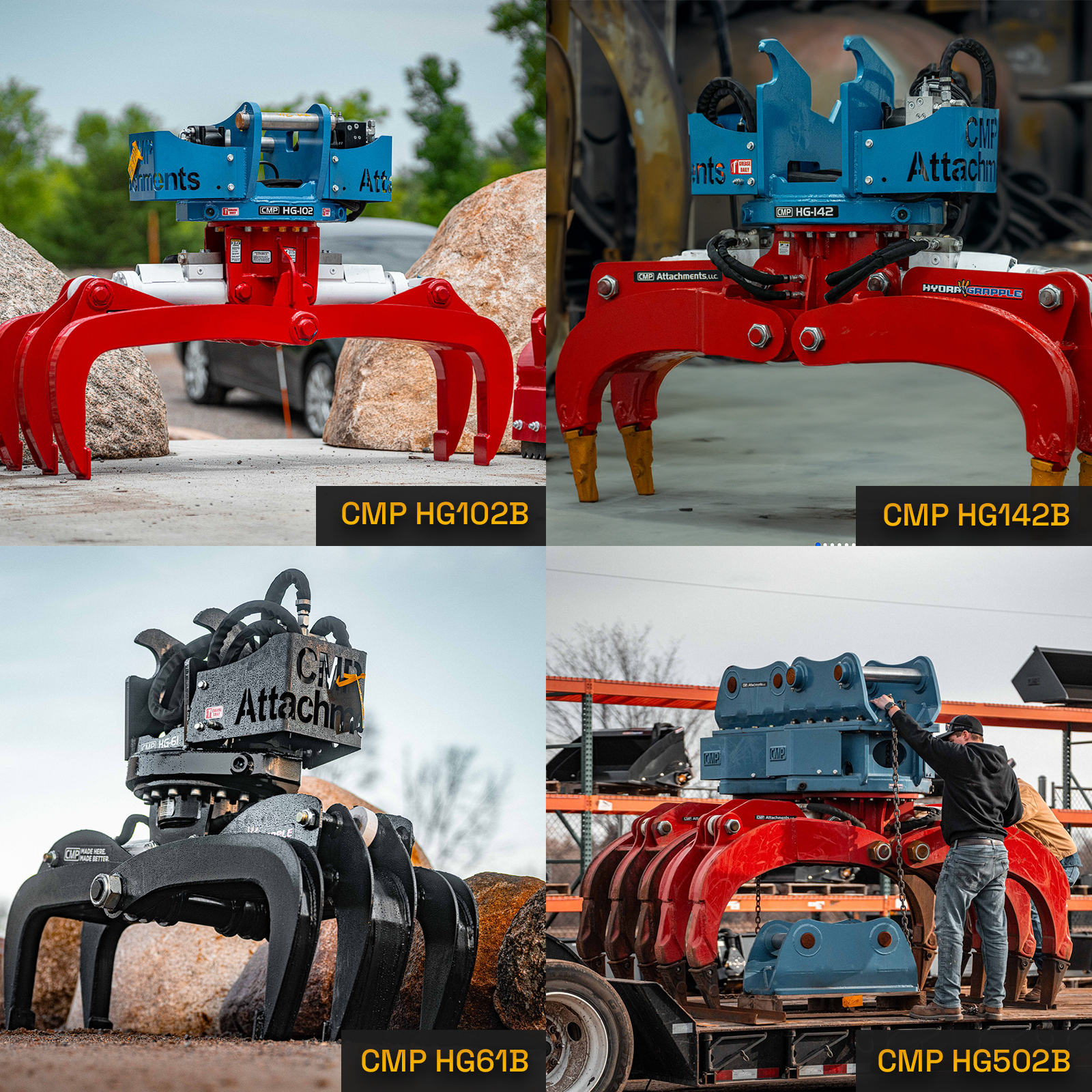

Product Specs
Model
CMP-HG61B
CMP-HG102B
CMP-HG142B
CMP-HG242B
CMP-HG302B
CMP-HG342B
CMP-HG402B
CMP-HG502B
Weight
600 lbs.
770 lbs.
1000 lbs.
1235 lbs.
2100 lbs,
2600 lbs.
2750 lbs.
5200 lbs.
Width
17"
22"
22"
23"
25"
25"
31"
35"
Opening
45"
55"
55"
68"
71"
71"
82"
86"
Bearing
12"
12"
12"
17"
20"
24"
24"
27"
Tooling Type
Welded tine pads
Welded tine pads
Replaceable teeth
Replaceable teeth
Replaceable teeth
Replaceable teeth
Replaceable teeth
Replaceable teeth
Rotation Motor
Single
Dual
Dual
Dual
Dual
Dual
Dual
Dual
