CMP Excavator 102B Series Bypass Hydra Grapple
• 360-Degree Control
• Superior Rotational Control
• Manufactured in America

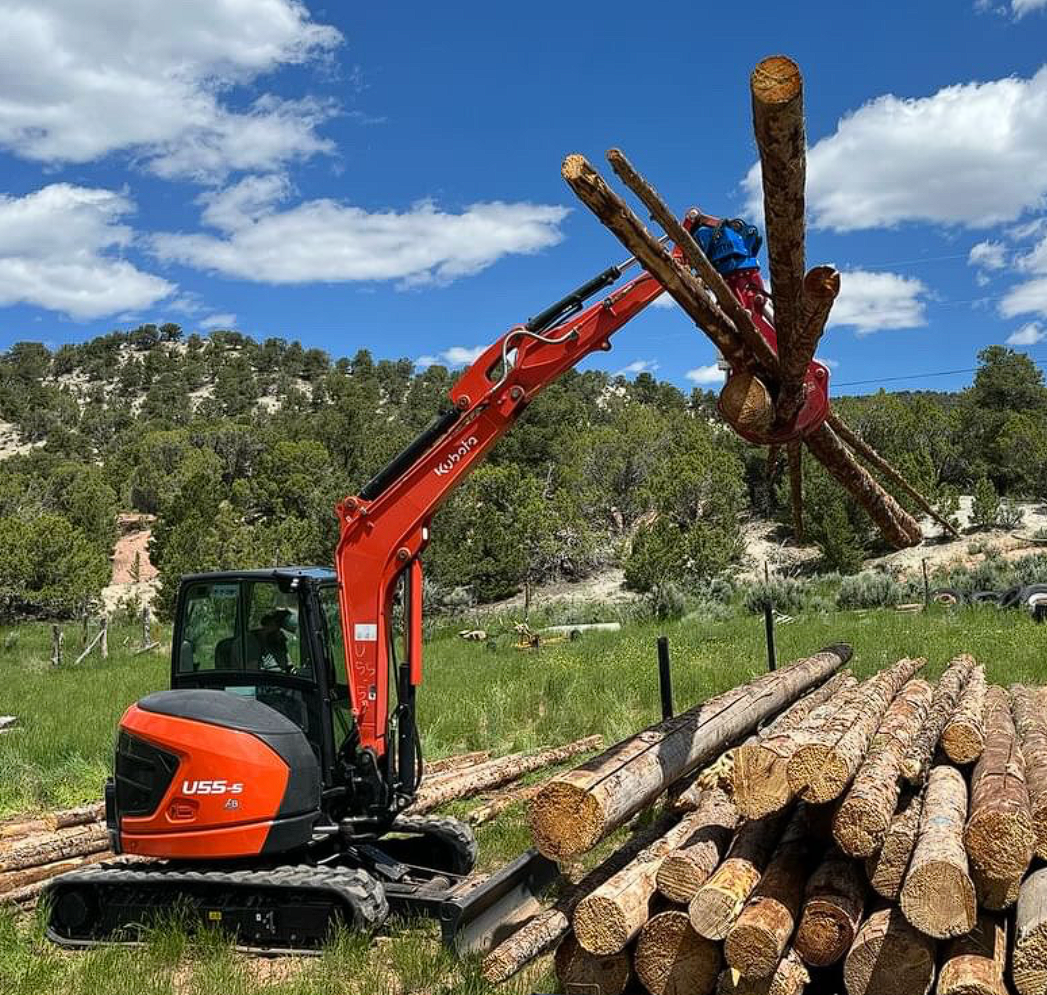

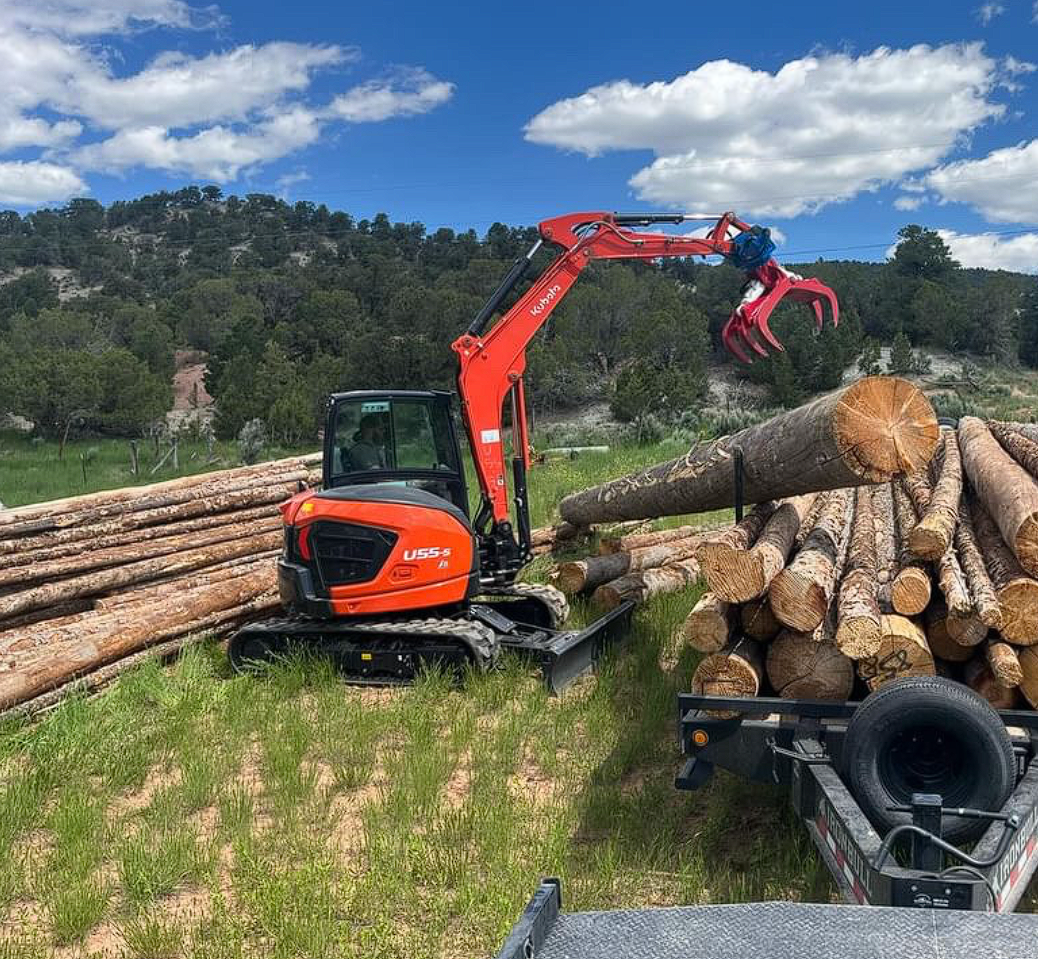

The CMP 102B Bypass Hydra Grapple brings dual-motor torque, powerful clamping, and 360-degree control to 40–60 class mini and forestry excavators. Built with high-tensile steel and lock-valve cylinders, it delivers precision, speed, and durability for heavy log and debris handling.
About the Product
Product Features

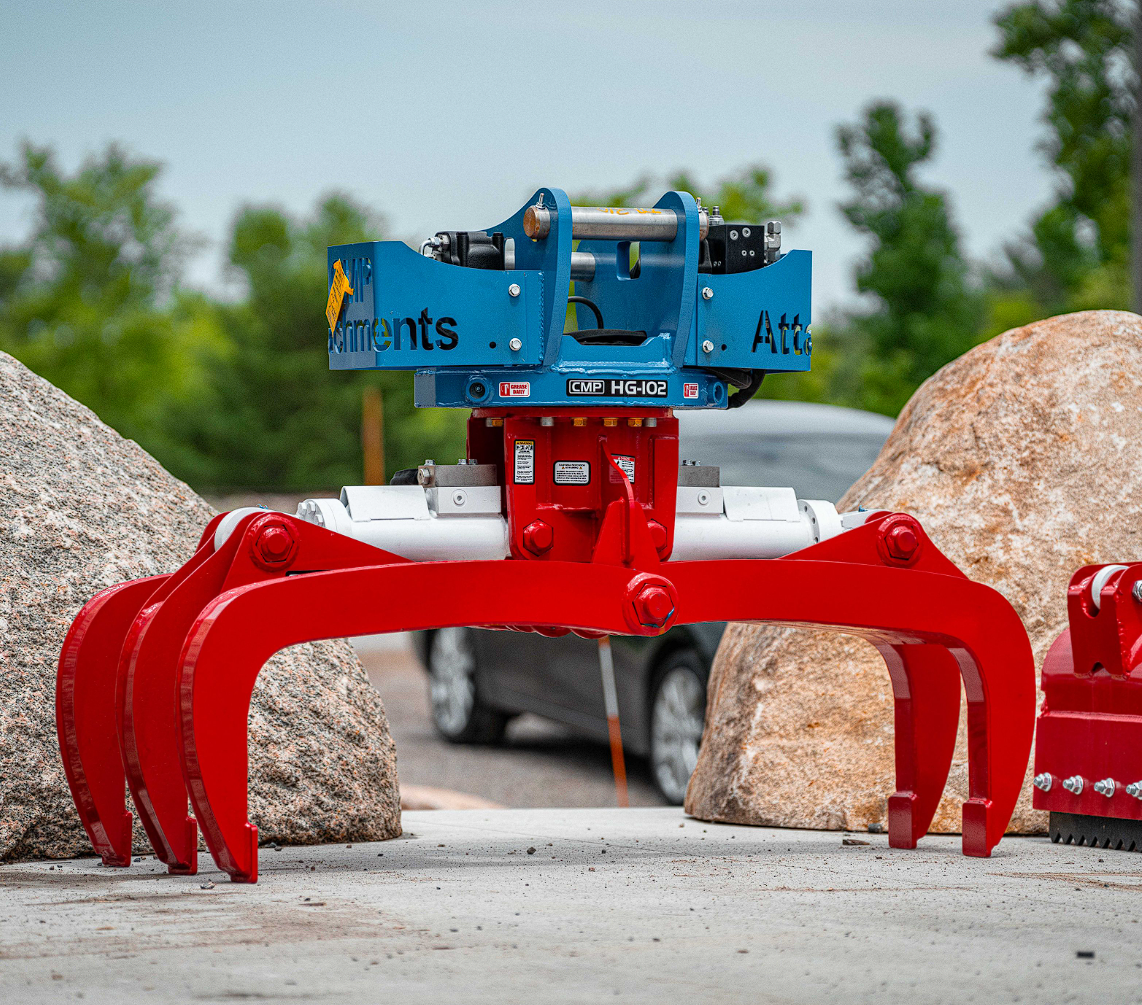

The CMP Excavator 102B Series Bypass Hydra Grapple is engineered for 40–60 class mini, spider, and forestry excavators that demand exceptional rotational torque and clamping strength. As the smallest dual-motor bypass model in the lineup, the 102B delivers fast, precise handling of logs, brush, poles, and debris. Dual high-torque motors, lock-valve cylinders, and built-in cross reliefs provide smooth, controlled rotation even under heavy load. A high-tensile steel body with welded tine pads ensures long-term durability. For operators seeking increased speed, accuracy, and productivity over standard sorting or dangle grapples, the 102B is the perfect fit.
- Dual-motor high-torque rotational drive for maximum control.
- Dual clamping cylinders with secure lock valves.
- High-tensile steel body with welded tine pads for long wear life.
- Built-in cross reliefs for smoother rotation under heavy load.
- Fast, accurate handling of logs, brush, poles, and debris.
- Optional electronic diverter valve eliminates costly hydraulic re-plumbing.
Product Specs
Model
CMP-BHG-102B
Width
22"
Opening
55"
Bearing
12"
Weight
770 lbs,
Buy Now
• 360-Degree Control
• Superior Rotational Control
• Manufactured in America
The CMP 102B Bypass Hydra Grapple brings dual-motor torque, powerful clamping, and 360-degree control to 40–60 class mini and forestry excavators. Built with high-tensile steel and lock-valve cylinders, it delivers precision, speed, and durability for heavy log and debris handling.
Call for Price
