ANBO Manufacturing Sub-Compact Grapple Rake
• Manufactured in Colville, WA
• AR400F Steel Frame
• Optimized for Sub-Compact Tractors

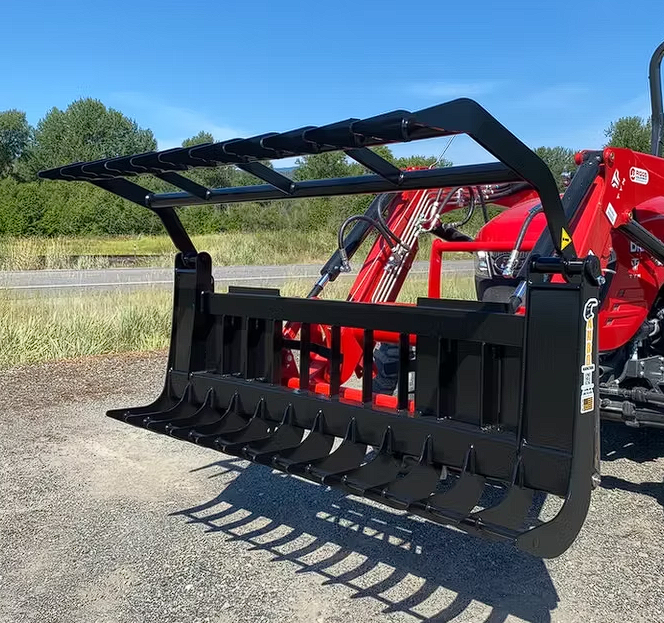

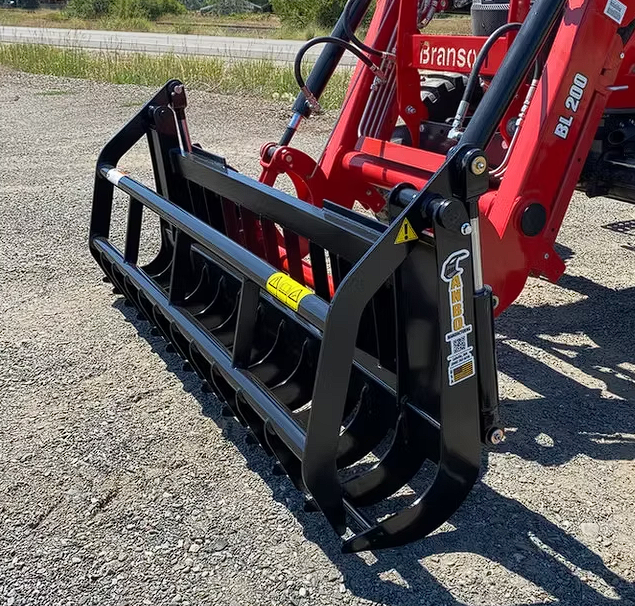

The ANBO Sub-Compact Grapple Rake delivers big power for machines under 25 HP. Built from lightweight AR400F steel, it’s ideal for brush, rock, and debris removal. Featuring a clamshell design and rounded tines for smooth digging, this USA-made grapple offers unbeatable strength, control, and long-lasting performance.
About the Product
Product Features
The ANBO Sub-Compact Grapple Rake is engineered for small tractors and compact machines under 25 horsepower—strong, lightweight, and built to last. Made from AR400F steel that’s five times stronger than grade 36, this attachment delivers powerful performance without adding unnecessary weight. Its rounded tines, clamshell design, and reinforced rake bar make it ideal for raking, digging, and moving brush, rocks, and debris. Perfect for property maintenance and light clearing, every grapple is proudly made in the USA, with greaseable pivot points, secure hose routing, and industry-leading warranty coverage for years of reliable use.
- Designed for tractors and compact machines under 25 horsepower.
- Built from AR400F steel — 5x stronger than standard grade 36 steel.
- Rounded tines with a rake bar for added strength and smooth operation.
- Lightweight design maximizes lift capacity and performance.

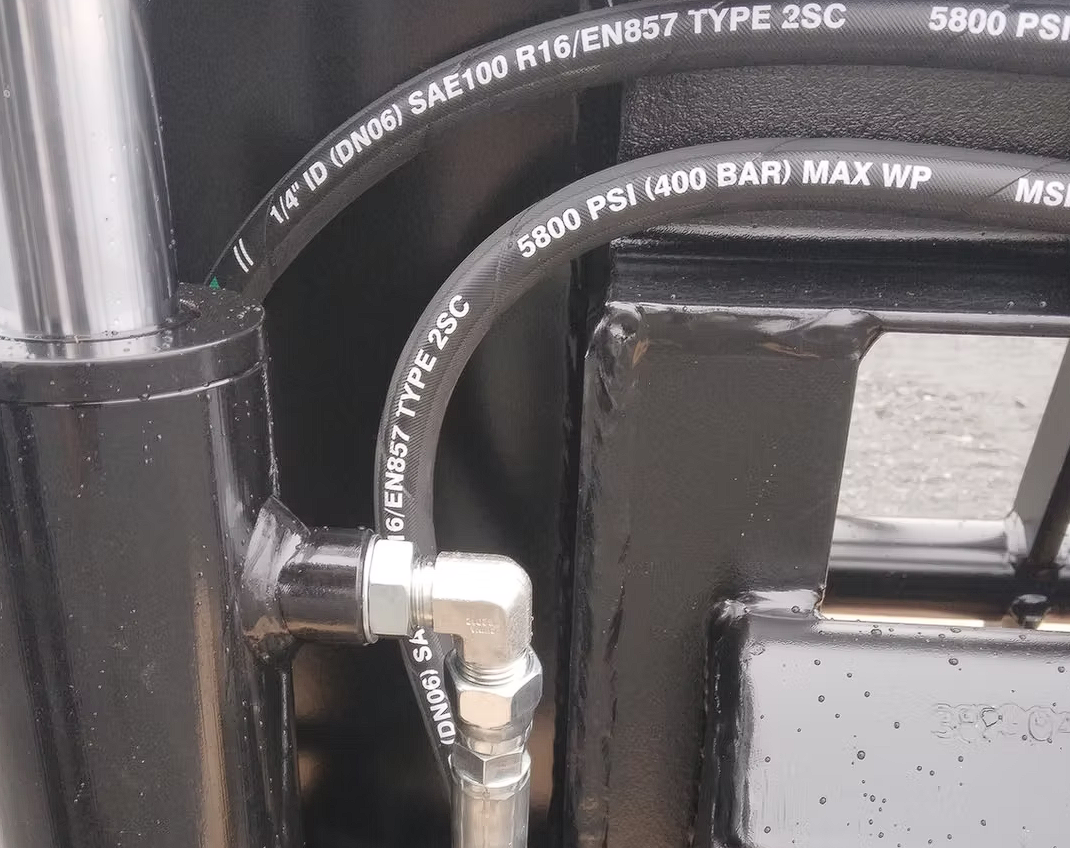

- Greaseable pivot points and protected hydraulic hoses.
- Proudly made in the USA with 2-year grapple and 3-year cylinder warranties.
Product Specs
Model
ANBO-GRSC-5-32
ANBO-GRSC-5-37
ANBO-GRSC-5-42
ANBO-GRSC-5-48
ANBO-GRSC-5-53
ANBO-GRSC-5-58
ANBO-GRSC-5-63
ANBO-GRSC-5-69
Width
32"
37"
42"
48"
53"
58"
63"
69"
Max HP
25 HP
25 HP
25 HP
25 HP
25 HP
25 HP
25 HP
Tine Spacing
5"
5"
5"
5"
5"
5"
5"
Tine Size
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Outer: 1/4" AR400F Steel Inner: 1/4" AR400F Steel
Opening
33"
33"
33"
33"
33"
33"
33"
Cylinder Size
2" x 6"
2" x 6"
2" x 6"
2" x 6"
2" x 6"
2" x 6"
2" x 6"
ANBO Manufacturing
ANBO Manufacturing is known for building some of the toughest, if not the grapples in the industry. American-made, precision engineered, and built from premium AR400F steel for unmatched strength, wear resistance, and lifetime durability. Their grapples are trusted and known by farmers, land managers, contractors, and heavy equipment operators across the country for one simple reason: they hold up when nothing else does.
After briefly closing in 2018, ANBO was brought back to life in 2020 by a former customer who believed equipment this well-built shouldn’t disappear. Still family owned and proudly built in the Colville, WA, ANBO is focused on doing what they do best: crafting high-quality attachments that outlast the machines they’re mounted on.
