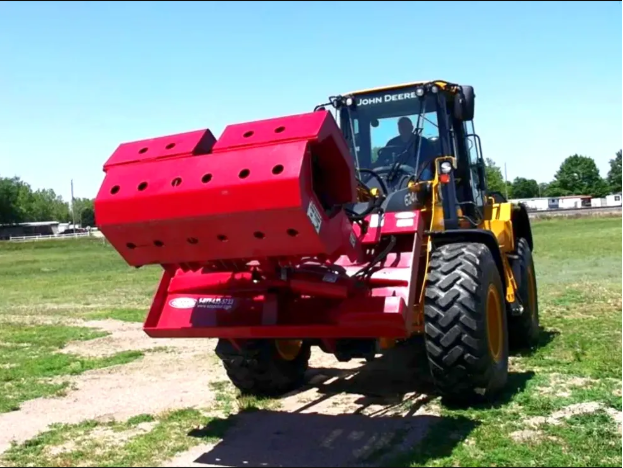

EZ Spot HD-88 Extreme Pole Setter

The EZ Spot UR HD-88 Heavy Duty Pole Setter is designed to manage utility poles up to 45 feet in length. Its innovative design allows operators to pick up poles from the ground or a trailer and rotate them to a vertical position with ease and precision. This functionality eliminates the need for additional equipment like cranes or slings, streamlining the pole-setting process and reducing labor costs.​ Key features include a 115-degree rotation capability, enabling precise placement of poles even in challenging terrains. The attachment's jaws can open up to 20.5 inches and close down to 5 inches, or even 0 inches with optional inserts, accommodating various pole sizes. The rubber-lined jaws protect the pole surface during handling. Additionally, the dual-cylinder clamp system, each with a breakout force of 21,208 lbs, ensures a secure grip on the pole throughout the operation.​ This attachment is compatible with all skid steers equipped with the Universal Quick’Tach system and can be adapted for use with excavators, telehandlers, and backhoes using specialty bolt-on mounts. It comes complete with hydraulic hoses, flush-faced couplers, a spring hose mount, and a wiring harness tailored to your machine's specifications.
